Pharmaceutical GHL High Shear Granulator Automatic Wet Mixing and Granulating Machine

Delivery Time : Shipment arranged within 3 working days after payment.

Brand Name : Pengduo

Certification : iso9000，CE

Packaging Details : wodden case

Capacity Range : Available in multiple sizes from 10L to 600L working volume to suit different production scales.

Place of Origin : China

Machine Configuration : Utilizes a robust horizontal cylindrical structure for stable and efficient high-shear granulation.

MOQ : 1 set

Versatile Application : Ideal for processing powders into granules in pharmaceutical, food, chemical, and cosmetic industries.

Price : small equipment：5000-10000$ | medium & large equipment：15000-30000$

Payment Terms : L/C,T/T,D/P,western union…

Low Maintenance : Designed with minimal wear parts and easy access points for simplified routine maintenance.

Model Number : GHL-300 High Shear Granulator

Post-Process : Benefits Produced granules have superior flow properties, enhancing drying efficiency and reducing processing time.

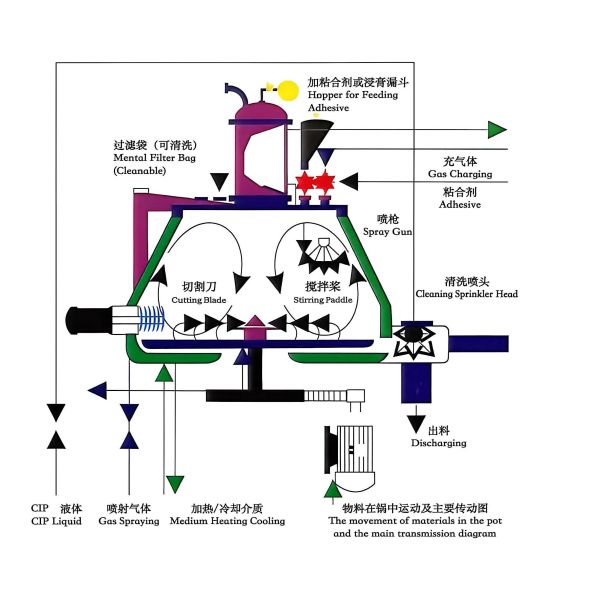

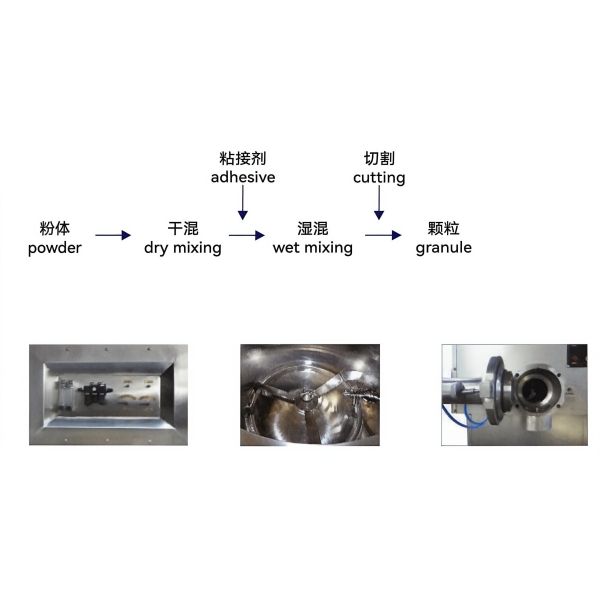

Material Handling : Processes dry powders into wet mass using a bottom mixer, then cuts into uniform particles with a side cutter.

Contact Now

GHL High Shear Rapid Mixer Granulator Industrial Wet Powder Granulation Equipment Dryer Line
Pharmaceutical GHL High Shear Granulator Automatic Wet Mixing and Granulating Machine

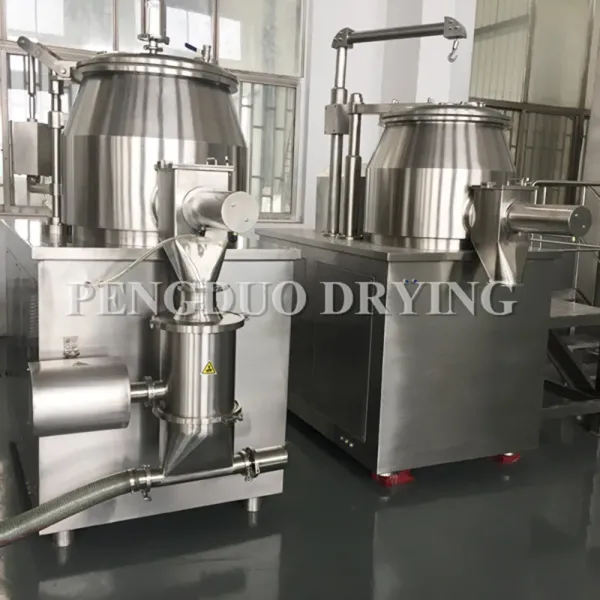

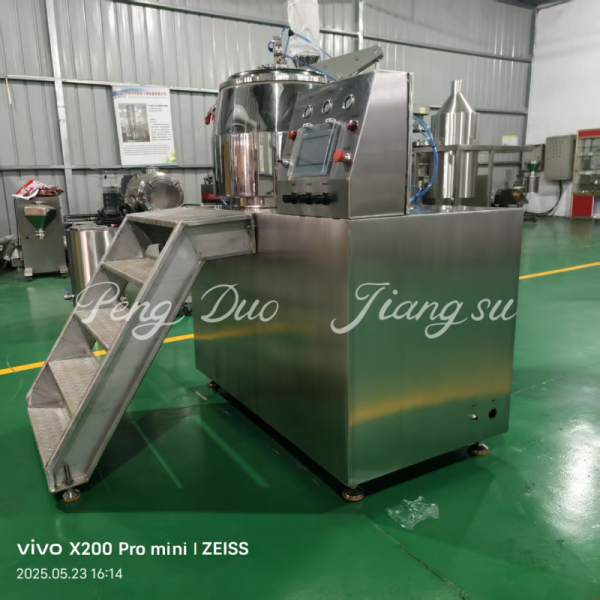

GHL High Shear Granulator
Designed with a cylindrical body, the unit uses high-speed rotor blades for wet granulation, delivering granules of high density and superior stability. Its air-sealed drive shaft supports water flushing for easy cleaning.
Pharmaceutical GHL High Shear Granulator Automatic Wet Mixing and Granulating Machine
Key Features

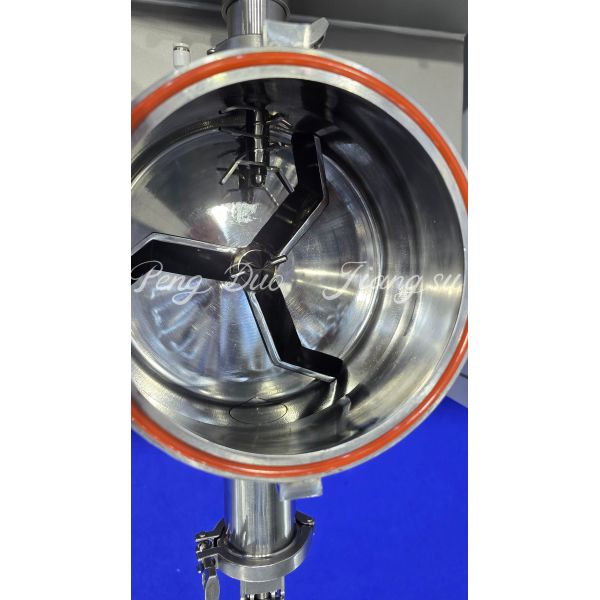

  • Cylinder structure with rotor wings for high-speed wet granulation with high granulate density and particle stability
  • Air-filled seal shaft for drive system, convertible to water for washing
  • Fluidized granulation produces spherical granules with excellent flow ability
  • Reduces adhesive usage by 18-25% compared to traditional processes with shorter drying time
  • Mixing: 2 mins; Granulation: 1–4 mins. Efficiency is 4–5 times that of traditional processes.
  • Dry mixing, wet mixing and granulation are completed in one sealed container, compliant with GMP.
  • Comprehensive safety and protective measures throughout operation
  • Jacket type available upon request
Technical Specifications
Model 50 150 200 250 300 400 600
Volume (L) 50 150 200 250 300 400 600
Output (kg/batch) 15 50 80 100 130 200 280
Mixing Speed (r.p.m) 200/400 180/270 180/270 180/270 140/220 106/155 80/120
Mixed Power (kw) 4/5.5 6.5/8 9/11 9/11 13/16 18.5/22 22/30
Cutting Speed (r.p.m) 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000
Cutting Power (kw) 1.3/1.8 2.4/3 4.5/5.5 4.5/5.5 4.5/5.5 6.5/8 9/11
Compressed Air Consumption (m³/min) 0.6 0.9 0.9 0.9 1.1 1.5 1.8
Weight (kg) 500 800 1000 1300 1800 2200 2600
Pharmaceutical GHL High Shear Granulator Automatic Wet Mixing and Granulating Machine Pharmaceutical GHL High Shear Granulator Automatic Wet Mixing and Granulating Machine

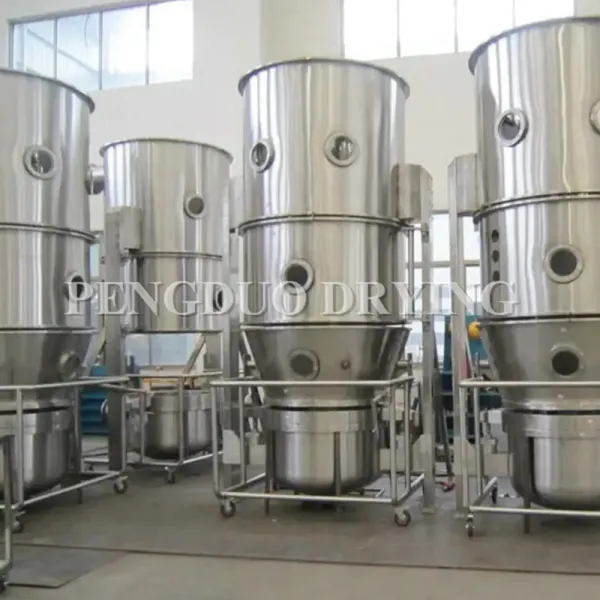

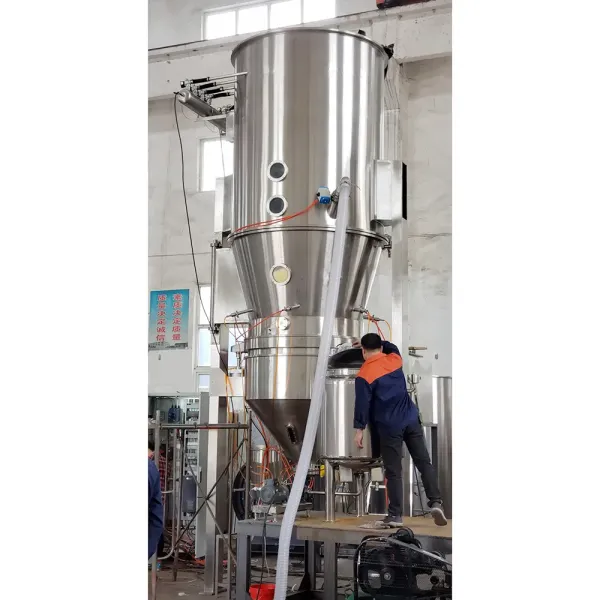

Product Line Overview
Pharmaceutical GHL High Shear Granulator Automatic Wet Mixing and Granulating Machine Pharmaceutical GHL High Shear Granulator Automatic Wet Mixing and Granulating Machine Pharmaceutical GHL High Shear Granulator Automatic Wet Mixing and Granulating Machine Pharmaceutical GHL High Shear Granulator Automatic Wet Mixing and Granulating Machine Pharmaceutical GHL High Shear Granulator Automatic Wet Mixing and Granulating Machine Pharmaceutical GHL High Shear Granulator Automatic Wet Mixing and Granulating Machine Pharmaceutical GHL High Shear Granulator Automatic Wet Mixing and Granulating Machine Pharmaceutical GHL High Shear Granulator Automatic Wet Mixing and Granulating Machine Pharmaceutical GHL High Shear Granulator Automatic Wet Mixing and Granulating Machine

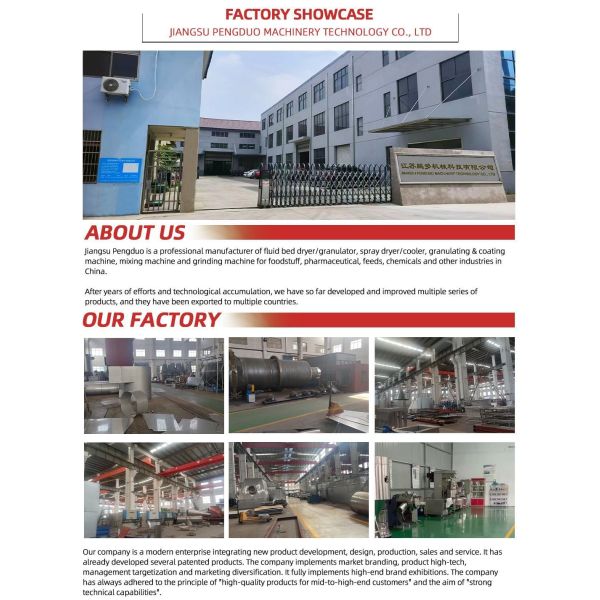

Company Advantages
Pharmaceutical GHL High Shear Granulator Automatic Wet Mixing and Granulating Machine
Different kinds of products are available in our company. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
Certifications
Pharmaceutical GHL High Shear Granulator Automatic Wet Mixing and Granulating Machine
Frequently Asked Questions
What kinds of payment terms can you accept?
The most commonly used payment terms are T/T, L/C, Paypal, Western union, etc.
What's your delivery time?
Usually we will arrange the shipment within 15-45 days after confirming the order.
How about the packing?
Standard packing, we also accept customized pack.
What is the Min Order Quantity?
Different products have different MOQ.
How about the validity of quotation?
In normal, the validity can keep a month, but when market changes fast, the validity will be short accordingly.
What documents you provide?
Usually, we provide Commercial Invoice, Packing List, Bill of loading, COA, and Origin of certificate. If your markets have any special requirements, let us know.
For more information, please don't hesitate to contact us.
